Product Description

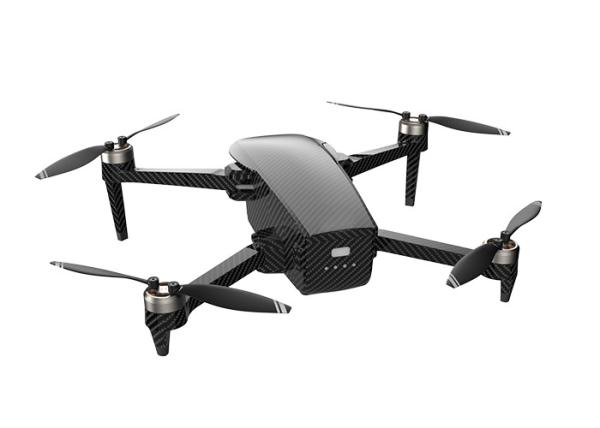

ZAi 1080P 10km Search Rescue Drone With 3 Axis Gimbal Camera
This infrared thermal imaging foldable drone has a 10km flight distance, and a 30-minute range, can capture clean photos and night scene videos, has excellent noise suppressor ability, and is perfect for electric power inspection, , and
The drone is an advanced robotic drone designed for search and rescue purposes. It features an LCD screen and a foldable wheel that ase can sing in the air for up to 40 minutes with no load or 29 minutes with a full load. The flight control system is compatible with the Mavlink Protocol, and the drone is equipped with both GPS and GLONASS satellite positioning systems for precise tracking. With its advanced features and capabilities, this search and rescue drone is an essential addition to any rescue team.
Drone Aircraft
4G Extended Image Transmission, Global 4G Image Transmission, Unlimited Distance, GPS/GLONASS, Operating Temperature Range, Flight Time, Maximum Distance
Technical Parameters
| Parameters | Value |
| Aircraft | |
| Product Name | ZAi 1080P 10km Search Rescue Drone |
| Model No. | ZAi-Faith 2T |
| Size | Unfold:191 X 262 X 107 mm (L*W*H) Fold: 179X 108 X 74 mm(L*W*H) |
| Wheelbase | 280 mm |
| Weight (Battery & Propellers Included) | 562g |
| Max Ascent Speed | 4m/s(sport mode) 3m/s(Normal mode) |
| Max Descent Speed | 3m/s(sport mode) 2m/s(Normal mode) |
| Max Service Ceiling Above Sea Level | 4000 m |
| Max Flight Time | 32 mins |
| Operating Temperature Range | ﹣5°C~45°C |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range | vertical: +/- 0.5 m ± 0.2 m(ultrasonic system,optical flow system works) horizontal: +/- 1.5m ± 0.3 m(ultrasonic system,optical flow system works) |
| Operating Frequency | 2.4G |
| Maximum flight height | 120m |
| Optical flow system | |
| Operating Environment | Surface with clear pattern and adequate lighting (lux > 15) |
| Velocity Range | ≤1.5 m/s at 6.6 ft (2 m) above ground |
| Altitude Range | 0.5~5m |
| Ultrasonic altitude system | |
| Operating Environment | except for the surface of water or ground of absorbing material (such as thick carpet) |
| Velocity Range | ≤ 3m/s |
| Altitude Range | 0.2-4.5m |
| 3-axis gimbal | |
| stabilization | 3-axis(pitch:+30/-120°,roll:± 30°,course:±30°) |
| controllable range | pitch:-90°~20° |
| Jitter Amount | 0.01° |
| Normal camera | |
| sensor | SONY CMOS |
| image size | 3840*2160(8mp) |
| video recording resolution | 2716×1524(2.7k)25FPS |
| supported file system | FAT32(<=32GB) /exFAT(>32GB) |
| video | MP4 |
| operating temperature range | 0°C~40°C |
| Thermal imaging infrared camera | |
| sensor | Vanadium oxide uncooled infrared focal plane detector |
| zoom | 4.3mm |
| sensor resolution | 256×192 @25Hz |
| Infrared temperature measurement accuracy | ±2℃ or ±2% |
| measuring range | Industrial temperature measurement: -15 ℃~150 ℃ (high image quality) 50 ℃~550 ℃ (wide range) |
| Digital zoom | 8X |
| Effective measurement distance (person) | about 150m |
| Pixel spacing | 12 μm |
| Wavelength range | 8-14μm |
| photo format | R-JPEG |
| video format | MP4 |
| Temperature measurement method | Point temperature measurement, Regional temperature measurement |
| focusing mode | Non-thermal prime lens |
| support for file system | FAT32 |
| Support for storage card types | MicroSD card, with a maximum support of 128GB and a the transmission speed of UHS-I Speed Grade 3 rated Micro SD card. |
| APP | |
| Mobile App | C-Fly Go |
| Maximum FPV transmission distance | 10km |
| Resolution | 1080p |
| compatible operating system | Andriod 6.0 above, IOS 10.0above |
| Remote Controller | |
| Operating Frequency | 2.4GHZ |
| Screen type | LCD |
| Screen size | 5.5 inch |
| Resolution | 1080p |
| maximum transmission distance | 10km |
| EIRP | ＜26 dBm(FCC),＜20 dBm(CE/SRRC/MIC) |
| working time | about 4 hours |
| operating temperature range | ﹣5°C~45°C |
| charger type | USB-C |
Product Advantages
- small body size powerful performance: high-quality carbon fiber body texture
- infrared thermal imaging technology: it can observe day and night
- visible light camera, dual camera channel
- digital image transmission distance of up to 10 kilograms
- optical flow positioning hovering
- 3-AXiS Micro Gimbal
- duration time 30 minutes
Product Application
This infrared thermal imaging foldable drone with a 10km flight distance, and a 30-minute range, can capture clean photos and night scene videos, it has excellent noise suppression ability, perfect for electric power inspection, , and .
